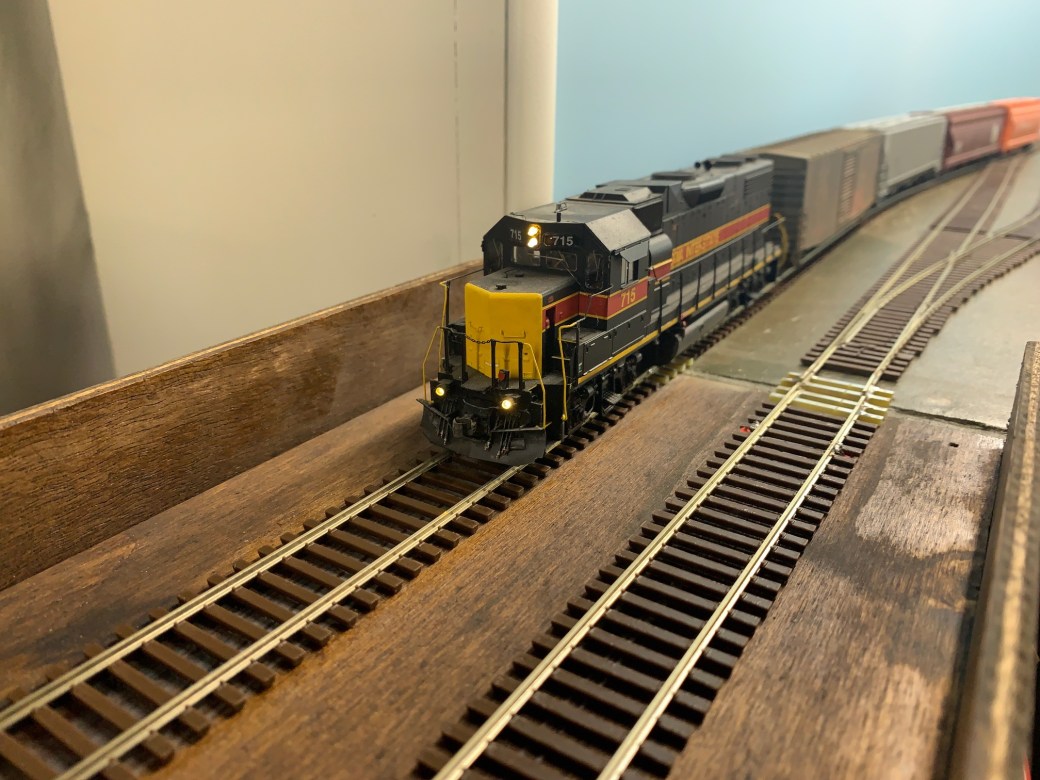

If you take a good look at the plan for The Hills Line, you’ll see the oft-mentioned segments that make up the layout. Joining them together is a set of custom built lift-out sections assembled from whatever scraps were left over from benchwork construction.

Since the sections are supposed to represented unmodeled portions of the prototype, in some cases several miles of the prototype, my goal was to have the lift-outs serve as “resets” between visual elements. The sections will not be scenicked, ballasted, or otherwise detailed beyond a simple track on planks of wood. I did, however, stain the sections to match the shelving underneath the benchwork in an attempt to visually tie them to the layout. The track will also be painted a base brown coat to further signify their off-stage persona.

gaps2

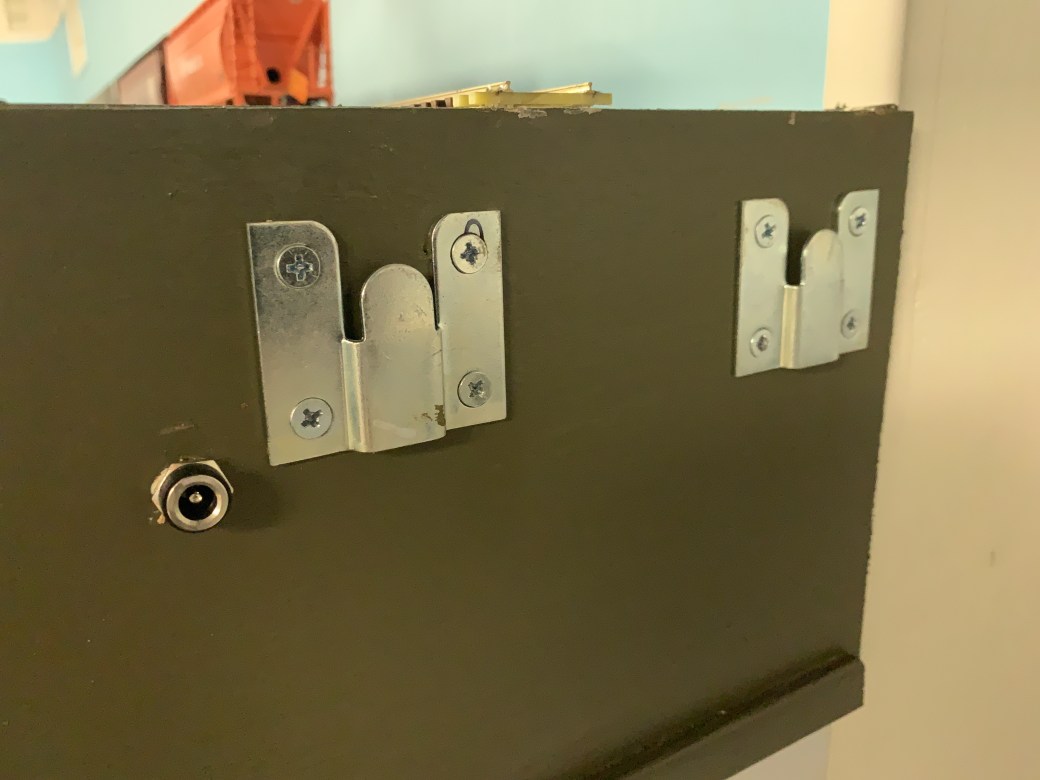

To mechanically link the lift-outs to the benchwork, I went with flush-mount hangers. So far, they do a good job of keeping the sections tight to the mating benchwork without the effects of expansion and contraction caused by a less-than-ideal layout environment.

gaps4

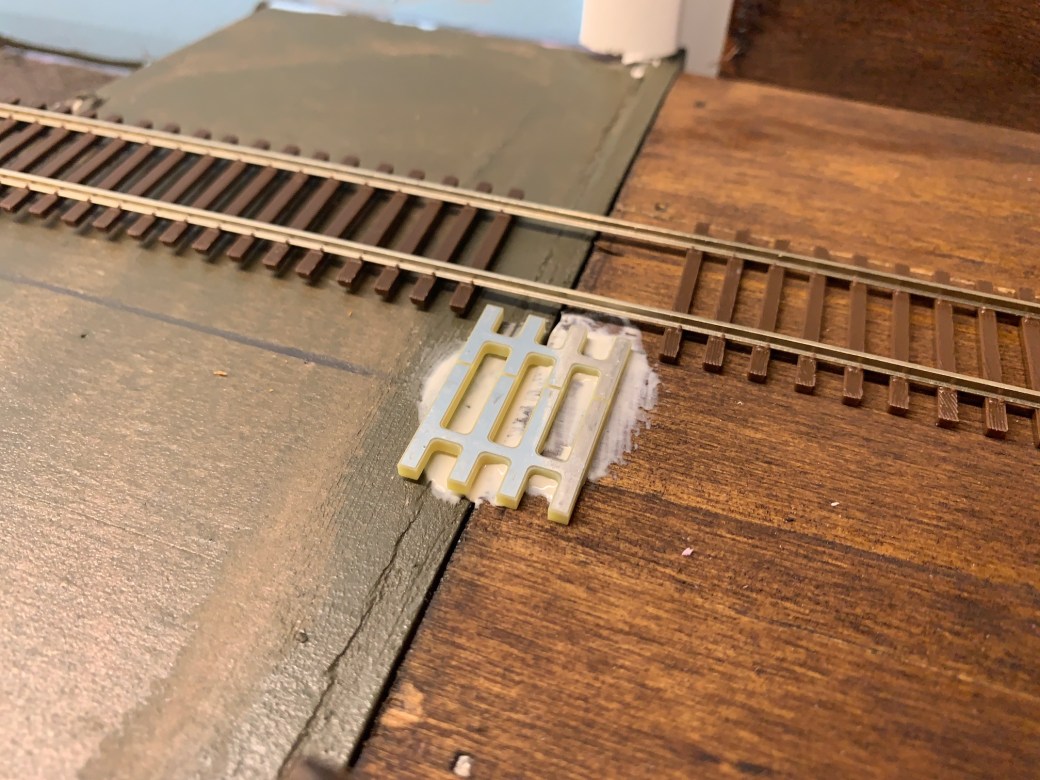

American Tie & Timber’s Gapmaster ties were used to keep the track in alignment. The prebuilt PC-board ties were glued into place, then the Micro Engineering Flextrack ties were removed from the same relative position in the track. As the name implies, the Gapmasters fill the gap.

gaps5

gaps6

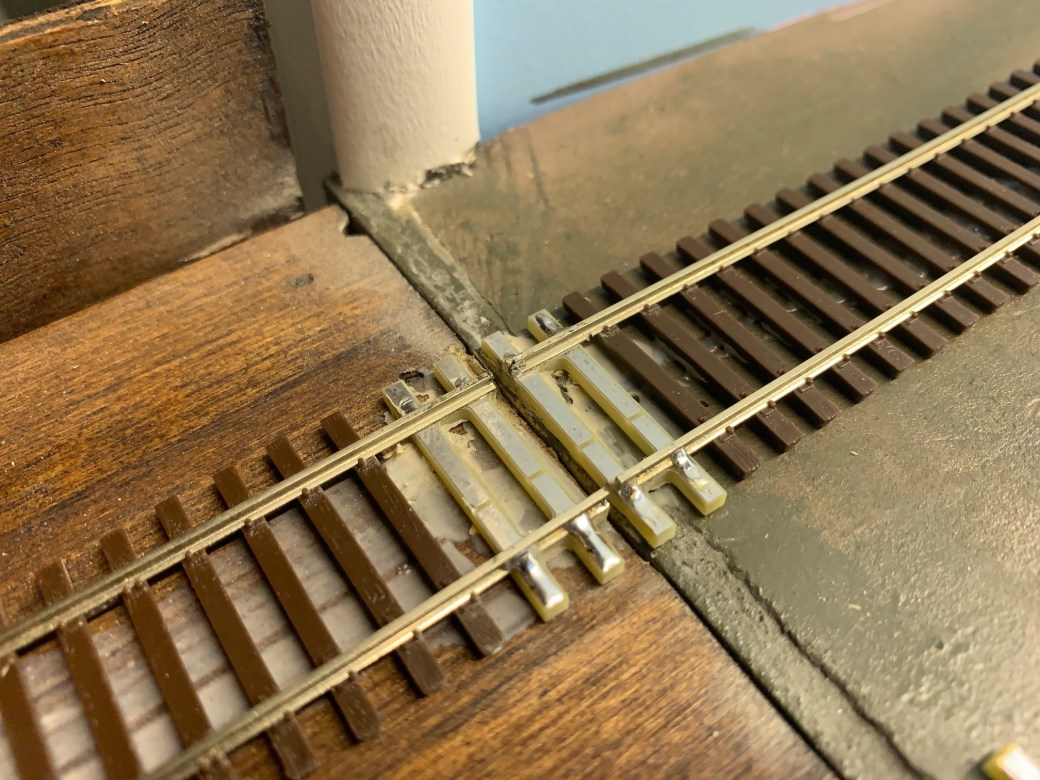

Once positioned, just solder, cut, and voilà! Track that stays in alignment! Once painted the ties should disappear into the boards and not bring attention to themselves.

Unfortunately the lift-out’s electrical connections do bring attention to themselves. My original plan was to have the metal flush-mount joiners pull double duty by passing electrical current to the tracks. However, a test of my setup showed inconsistent results and spotty connections. I’m sure I could have made it work, but reliability trumps aesthetics.

gaps7

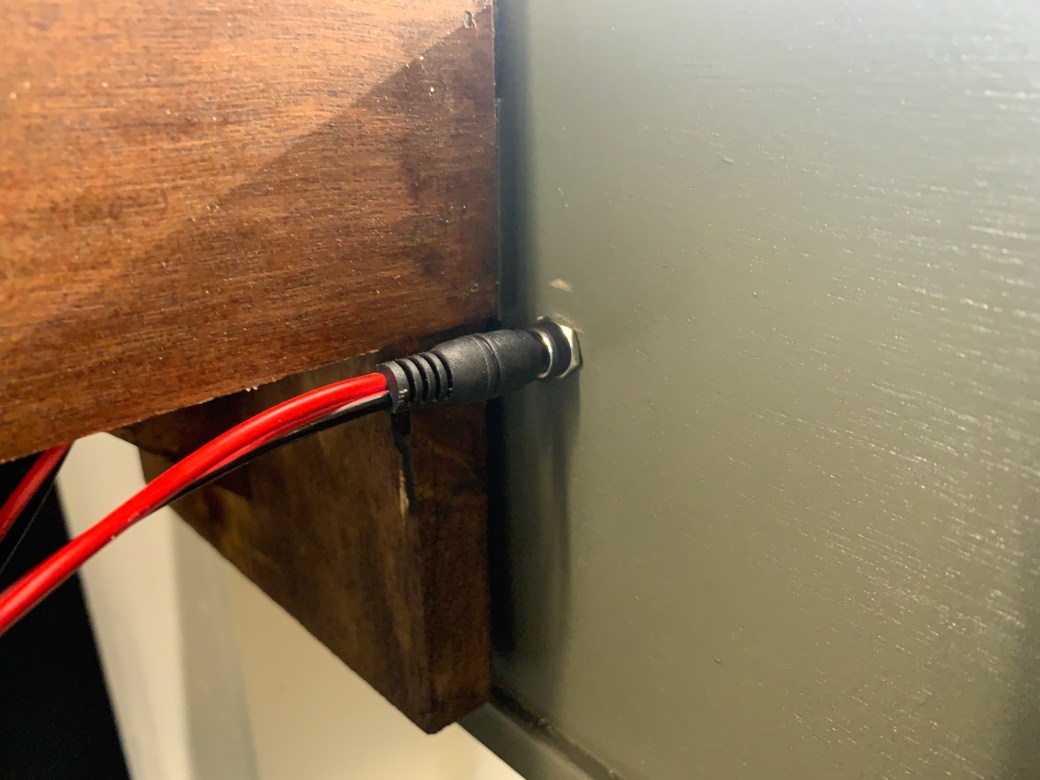

As a compromise, simple DC plugs and sockets were soldered to the tracks and bus wires and mounted to the fascia next to the lift-outs. I wish I could have kept the inner workings of the layout more hidden from view, but sometimes you have to see how the sausage is made.
